75″ Interactive Flat Panel PRO

The TRIUMPH BOARD 75″ INTERACTIVE FLAT PANEL PRO is a most powerful device with Android 9.0 and a uniquely wide range of connectivity.

The TRIUMPH BOARD 75″ INTERACTIVE FLAT PANEL PRO is a next-generation universal presentation tool for showcasing lessons or presentations interactively in any classroom or meeting room. New and improved 20-input IR touch technology and second-generation direct bonding with 0 mm gap enable a more precise writing experience. Antibacterial glass reduces disease transmission in the classroom or meeting room.

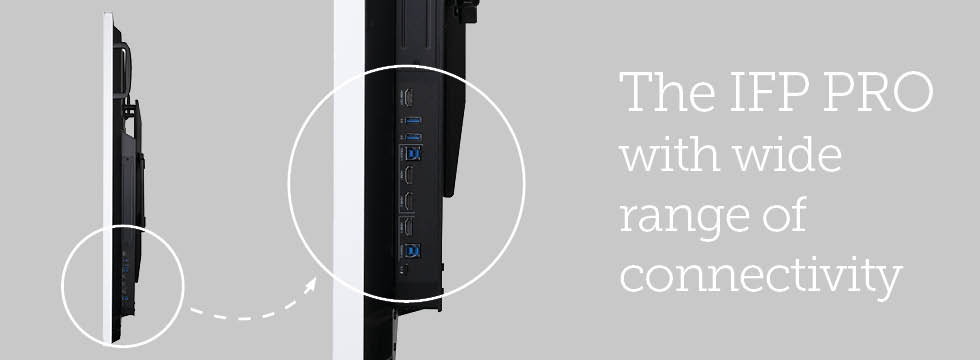

Various Inputs and Outputs can be accessed on the front, side, and even bottom of the panel, USB type-C included. The front USB ports can be used to connect OPSs, laptops, or Android devices. Powerful 2,4GHz / 5GHz built-in Wi-Fi Module with Bluetooth 5.0 allows creating a hotspot.

The TRIUMPH BOARD 75″ INTERACTIVE FLAT PANEL PRO is powered by Android version 9.0 bringing many new useful features, all in 4K resolution. You can create quick lessons in our new Note whiteboard, connect to your IFP with TeamViewer QuickSupport, easily clear the entire cache with one click or restrict access to certain inputs based on the customer’s needs. All features and setup can be brought up very quickly, with a side toolbar.

The TRIUMPH BOARD 75″ INTERACTIVE FLAT PANEL PRO takes customers to the next level with an extensive software bundle which includes: Whiteboard software, mozaBook CLASSROOM, EShare, OfficeSuite, TeamViewer QuickSupport.

Contact Us

If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.

Contact

Product videos

  • Android system 9.0 with 4K UI
  • Zero Bonding 2nd generation
  • Superior IR Touch
  • Antibacterial & Antiglare Glass
  • USB Type-C with Power Delivery
  • Wi-Fi / Bluetooth Built-in & Hotspot
  • LAN 1000 Mbps
  • 2x 16W Speakers
  • Optional Built in Mini PC
  • Optional LiftBoxes and Stands
  • Optional Remote Management System



  • Note – annotation software under every source (Android)
  • mozaBook CLASSROOM – educational presentation software (Windows)
  • EShare – wireless content sharing software (Windows & Android)
  • OfficeSuite – All-in-One Office Application (Android)
Flyer - INTERACTIVE FLAT PANELS PRO EN 2022 Download
Flyer - INTERACTIVE FLAT PANELS PRO US 2022 Download
Flyer - INTERACTIVE FLAT PANELS PRO RU 2022 Download
Flyer - INTERACTIVE FLAT PANELS PRO CS 2022 Download
Flyer - INTERACTIVE FLAT PANELS PRO LV 2022 Download
Flyer - INTERACTIVE FLAT PANELS PRO ES 2022 Download
Flyer - INTERACTIVE FLAT PANELS PRO DE 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 75 PRO EN 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 75 PRO US 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 75 PRO DE 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 75 PRO CS 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 75 PRO ES 2022 Download
EAN 8592580118531
Display
Diagonal Size 75" / 1905 mm
Resolution UHD (3840 × 2160 )
Screen Type OpenCell DLED Backlight
Aspect Ratio 16:9
Display Area 1652 (H) x 930 (V) mm
Display Colors 1.07 B (10 - bit)
Brightness 400 cd/m2
Contrast 1200 : 1 ( 5000 : 1 Dynamic)
Response Time 8 ms
Refreshing Frequency 60 Hz
View Angle 178°/178° (H/V)
Lifetime 50.000 hrs
Service Life 16/7
Glass
Glass Type Anti-Glare Tempered
Thickness 3 mm
Hardness Mohs 7
Coating Anti-bacterial
Bonding Technology Zero Bonding 2nd Gen
Air Gap 0 mm
Sound System
Speaker Position Downfaced
Sound Channel 2.0
Power Amplify 2 x 16 W
Inputs and Outputs
OPS 1 ( 120-PIN)
HDMI IN 3
HDMI OUT 1
VGA 1
AV IN 1
AV OUT 1
LAN 2 / 1000 Mbps
SPDIF 1
USB Type C 1
USB 2.0 1
USB 3.0 2 + 2 Front
TOUCH USB 2
RS232 IN 1
Computing
Version 9.0
CPU A73x4
GPU Mali G52x2
RAM/ROM 4GB DDR4/32GB
WI-FI 2,4 / 5 GHz Wi-Fi Module
BT 5.0 Wi-Fi Module
OTA Update Yes
Device Management TeamViewer QuickSupport
Touch System
Touch Technology Infrared Transmission
Number of Touch Points 20 Touch Input
Response Time < 10 ms (typ)
Touch Accuracy ± 1 mm
Minimum Touch Object ≥ 2 mm
Touch Tool Finger, Stylus, Palm
Compatibility Windows, Mac, Linux, Android
Power
Power Requirements 100~240 V AC 50/60 Hz
Power Consumption with OPS < 550 W max
Power Consumption without OPS < 232 W
Standby Power Consumption < 0.5 W
Dimensions
Outline Dimension 1709 x 1020 x 86 mm (LxWxD)
Packing Dimensions 1863 x 225 x 1140 mm (LxWxH)
Net Weight 50 kg
Gross Weight 64 kg
Mounting Brackets VESA 800 x 400
