65″ Interactive Flat Panel

The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL is a powerful device with Android 8.0 and a wide range of connectivity.

The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL is a universal presentation tool for showcasing lessons or presentations interactively in any classroom or meeting room. New and improved 20-input IR touch technology with direct bonding, enables a more precise writing experience. Antibacterial glass reduces disease transmission in the classroom or meeting room.

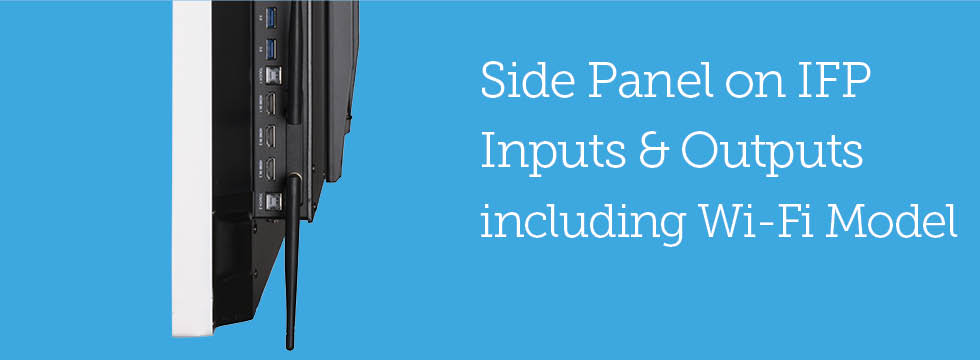

Various Inputs and Outputs can be accessed on the front, side, and even bottom of the panel, USB type-C included. The front USB ports can be used to connect OPSs, laptops, or Android devices. Powerful 2,4GHz / 5GHz Built-in Wi-Fi Module with Bluetooth 4.0 allows creating a hotspot.

The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL is powered by Android version 8.0 bringing many new useful features. You can create quick lessons in our new Note whiteboard, connect to your IFP with TeamViewer QuickSupport, easily clear the entire cache with one click or restrict access to certain inputs based on the customer’s needs. All features and setup can be brought up very quickly, with a side toolbar.

The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL takes customers to the next level with an extensive software bundle which includes: Whiteboard software, mozaBook CLASSROOM, EShare, OfficeSuite, TeamViewer QuickSupport.

Contact Us

If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.

Contact
  • Android system 8.0
  • Zero Bonding
  • IR Touch
  • Antibacterial & Antiglare Glass
  • USB Type-C with Power
  • Wi-Fi Built-in & Hotspot
  • LAN 1000 Mbps
  • 2x Front Speakers
  • Optional Built in OPS PC
  • Optional LiftBoxes and Stands
  • Optional Remote Management System



  • Note – annotation software under every source (Android)
  • mozaBook CLASSROOM – educational presentation software (Windows)
  • EShare – wireless content sharing software (Windows & Android)
  • OfficeSuite – All-in-One Office Application (Android)
Flyer - INTERACTIVE FLAT PANELS EN 2022 Download
Flyer - INTERACTIVE FLAT PANELS US 2022 Download
Flyer - INTERACTIVE FLAT PANELS RU 2022 Download
Flyer - INTERACTIVE FLAT PANELS CS 2022 Download
Flyer - INTERACTIVE FLAT PANELS ES 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 65 EN 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 65 US 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 65 DE 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 65 CS 2022 Download
Spec Sheet INTERACTIVE FLAT PANEL 65 ES 2022 Download
EAN 8592580118661
Display
Diagonal Size 65" / 1651 mm
Resolution UHD (3840 × 2160 )
Screen Type OpenCell DLED Backlight
Aspect Ratio 16:9
Display Area 1429 (H) x 804 (V) mm
Display Colors 1.07 B (10 - bit)
Brightness 400 cd/m2
Contrast 5000 : 1
Response Time 6.5 ms
Refreshing Frequency 60 Hz
View Angle 178°/178° (H/V)
Lifetime 50.000 hrs
Service Time 16/7
Glass
Glass Type Anti-Glare Tempered
Thickness 4 mm
Hardness Mohs 7
Coating Anti-bacterial
Bonding Technology Zero Bonding 1st Gen
Air Gap 1 mm
Sound System
Speaker Position Forward
Sound Channel 2.0
Power Amplify 2 x 15 W
Inputs and Outputs
OPS 1
HDMI IN 3+1 Front
HDMI-OUT 1
VGA 1
AV IN 1
AV OUT 1
LAN 2 / 1000 mbps
SPDIF 1
USB Type C 1 Front
USB 2.0 1 + 2 Front
USB 3.0 3 + 2 Front
TOUCH USB 2 + 1 Front
RS232 IN 1
Computing
Version 8.0
CPU A73x2 + A53x2
GPU Mali G51x2
RAM/ROM 3GB DDR4/32GB
WI-FI 2,4 / 5 GHz Wi-Fi Module
Bluetooth 4.0 Wi-Fi Module
OTA Update Yes
Device Management TeamViewer QuickSupport
Touch System
Touch Technology Infrared Transmission
Number of Touch Points 20 Touch Input
Response Time < 10 ms (typ)
Touch Accuracy ± 1,5 mm
Minimum Touch Object ≥ 3 mm
Touch Tool Finger, Stylus, Palm
Compatibility Windows, Mac, Linux, Android
Power
Power Requirements 100~240 V AC 50/60 Hz
Power Consumption with OPS < 300 W max
Power Consumption without OPS < 200 W
Standby Power Consumption < 0.5 W
Dimensions
Outline Dimension 1489 x 897 x 88 mm (LxWxD)
Packing Dimensions 1628 x 208 x 1005 mm (LxWxH)
Net Weight 38,85 kg
Gross Weight 48,75 kg
Mounting Brackets VESA 600 x 400
