MINI PC for IFP PRO

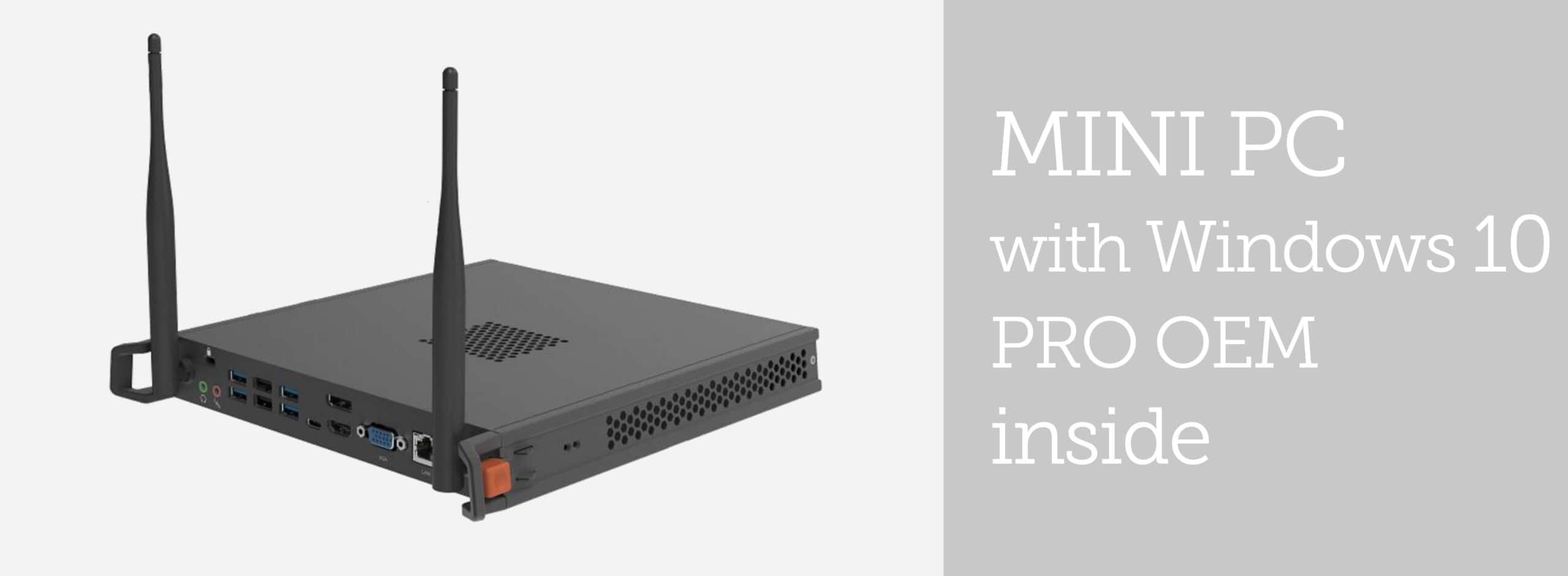

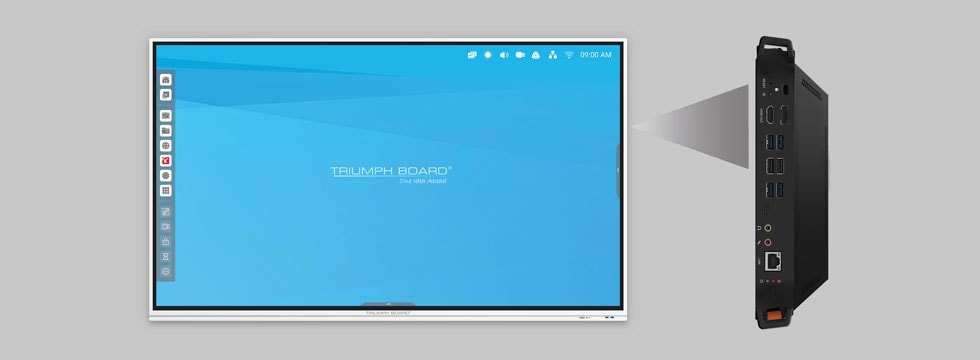

The TRIUMPH BOARD MINI PC for IFP PRO is a powerful, fully integrated personal computer for the TRIUMPH BOARD Interactive Flat Panel PRO Series with the Android system.
The TRIUMPH BOARD MINI PC for IFP PRO is equipped with 10th generation Intel Core i5 Processors, Intel Integrated Graphics, and 8 GB RAM, which gives high power for running applications. The 256 GB SSD disk provides high speed and sufficient capacity for saving and storing the user’s data.
The TRIUMPH BOARD MINI PC for IFP PRO includes a license of Microsoft Windows 10 Pro (OEM) with a selection of language options and preinstalled applications.
|Compatibility||IFP PRO Series|
|Processor||Intel Core i5-10400T|
|Graphics||Integrated UHD Graphics 630|
|Sound Card||Integrated High Definition Audio Stereo|
|Networking||Integrated 10 / 100 / 1000 M Adaption|
|Memory||2 x 4 GB DDR4|
|Hard Drive||256 GB M.2 SSD Disk|
|WI-FI||IEEE 802.11 ac (2.4G/5G), Bluetooth 4.2|
|Inputs and Outputs|
|USB||4x USB 3.0 / 2x USB 2.0|
|USB Type C||1|
|HDMI OUT||1 (up to 4K resolution)|
|DP OUT||1 (up to 4K resolution)|
|LAN||1 (1000 Mbps)|
|Input Power||100-240 V 50/60 Hz 1.5 A|
|Max Power Consumption||75 W|
|DC Power||DC IN 18 V 6 A|
|Power Supply Mode||Internal Power Supply|
|Operation System||Microsoft Windows 10 Professional (OEM), 64-bit MultiLang|
|Outline Dimension||246 x 265 x 35 mm|
|Packing Dimensions||353 x 312 x 91 mm|
|Net Weight||1950 g|
|Gross Weight||2500 g|
- Fully compatible with TRIUMPH BOARD Interactive Flat Panels PRO with the Android system
- Fully integrated solution in a slim design
- Windows 10 Pro (OEM) license
- Ideal product with sufficient power for pre-installed SW bundle and collaboration
- High-speed due to the powerful Intel Core i5 Processor and SSD disk
