98“ INTERACTIVE FLAT PANEL

The TRIUMPH BOARD 98” INTERACTIVE FLAT PANEL is a fully integrated, professional, multi touch UHD IFP with amazing performance and stunning visuals. It is an universal presentations tool for showing lessons or presentations interactively in any classroom or meeting room.

New and improved 20-input IR touch technology with 1mm accuracy and 1.8mm minimum touch object enables a more precise writing experience and even lets users write with a pencil.

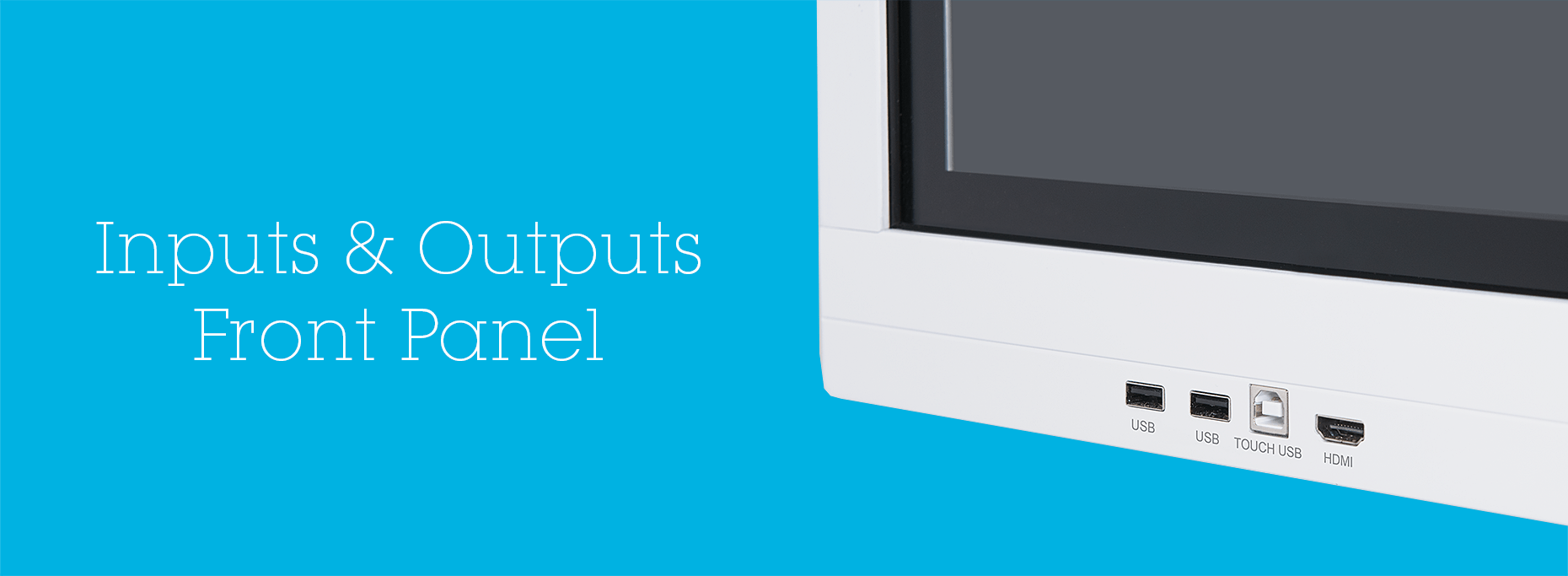

Various Inputs and Outputs can be accessed on the front, side and even bottom of the panel. A DP port is also available on the side panel. The front USB ports can be used to connect OPS, laptop or Android devices. Improved and stronger Dual 2,4GHz / 5GHz Wi-Fi dongle allows creating a hotspot even without a network infrastructure, so it’s possible to share content wirelessly to users’ devices and vice versa!

The IFP is powered by Android version 8.0 bringing many new useful features. The most popular browser, Google Chrome, now comes preinstalled as well as the unique TRIUMPH CLOUD online that can be used within Android. Users will be able to set up a password and lock the screen or set up a favorite wallpaper, no signal picture or lock screen picture. You can easily clear the entire cache with one click or restrict access to certain inputs based on the customer’s needs. All features and setup can be brought up very quickly, with a two-finger touch gesture.

Contact Us

If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.

Contact

Product videos

  • Multi-Touch (20 touch input)
  • UHD resolution (3840×2160)
  • Android system
  • Optional Built in OPS PC
  • Optional LiftBoxes and Stands



  • mozaBook CLASSROOM – with spectacular interactive content, built-in skill-developing, illustrative and virtual lab applications, even in 3D, which helps stimulate students’ interest and boost their acquisition of knowledge.
  • TRIUMPH CLOUD – an annotation application using the latest web technologies that can be used anywhere on any operating system.
  • EShare – a unique content sharing application designed for easy wireless collaboration between the TRIUMPH BOARD IFP and your device.
  • OfficeSuite – an all-in-one Office application that lets you easily view, edit, create MS Office documents and PDF on IFP build in Android.
TRIUMPH BOARD EDUCATION CATALOG EN 2020 Download
Datasheet INTERACTIVE FLAT PANEL 98 EN 2021 Download
Datasheet INTERACTIVE FLAT PANEL 98 US 2021 Download
Display
EAN 8592580116520
Screen Type OpenCell DLED Backlight
Aspect Ratio 16:9
Resolution UHD (3840 × 2160)
Display Area 2158,84 (H) x 1214,35 (V) mm
Display Colors 1.07 B (10 - bit)
Diagonal Size 98"
Brightness 500 cd/m2
Contrast 1300:1 (4000:1 Dynamic)
Response Time 8 ms
Refreshing Frequency 60 Hz
View Angle 178°/178° (H/V)
Lifetime 50.000 hrs (panel)
Mount System 800 x 400 (Optional)
Outline Dimension 2244,9 x 1340,4 x 108,2 mm
Packing Dimensions 2525 x 1750 x 435 mm
Net Weight 113 kg
Gross Weight 162,5 kg
Touch System
Touch Input 20 Touch Input
Sensing Type Infrared Transmission (multi-touch)
Response Time < 11 ms (typ)
Touch Accuracy ± 1 mm
Minimum Touch Object ≥ 1,6 mm
Writing Screen Mohs hardness of 7 / 4 mm Tempered Glass
Compatibility Windows, Mac, Linux, Android, Chrome
PC System OPS PC (Optional)
Sound System
Power Amplify 2 x 15 W
Power
Power Requirements 100~240 V AC 50/60 Hz
Power Consumption with OPS < 550 W max
Power Consumption without OPS < 500 W
Standby Power Consumption < 2 W
Manual Interactive Flat Panel UHD Series EN 2020 Download
Manual Interactive Flat Panel UHD Series CS 2020 Download
