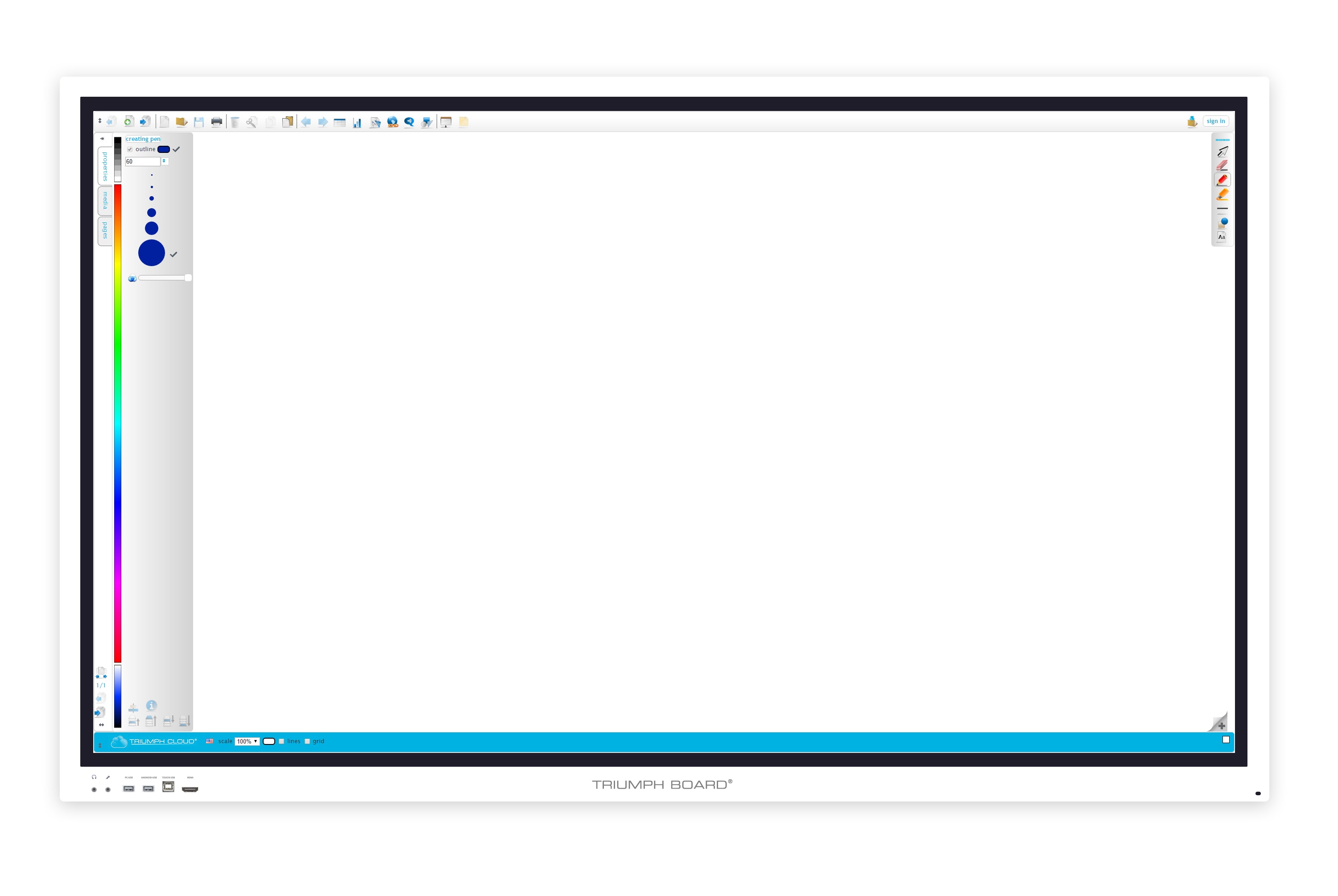

75″ Interactive Flat Panel

The TRIUMPH BOARD 75” INTERACTIVE FLAT PANEL is a fully integrated, professional, multi touch UHD IFP with amazing performance and stunning visuals.

The TRIUMPH BOARD 75” INTERACTIVE FLAT PANEL is an effective presentations tool for showing lessons or presentations interactively in any classroom or meeting room. The latest IR LED optical technology allows 32-finger touch, up to 32 users can write or draw using their fingers or a stylus.

The optional built-in OPS PC standard with incorporated Intel Skylake Processor and Microsoft Windows 10 Pro (OEM) with a selection of language options and preinstalled applications, delivering top-of-the-line performance for a zero-compromise experience.

A wide range of accessories such as LiftBoxes or mobile stands makes a perfect solution!

Contact Us

If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.

Contact
  • Multi-Touch (32 Touch Input)
  • UHD resolution (3840 x 2160)
  • Android system
  • Optional Built in OPS PC
  • Optional LiftBoxes and Stands
  • TRIUMPH CLOUD – annotation software (online & offline)

  • EShare – wireless content sharing  software (Windows & Android)
  • OfficeSuite – All-in-One Office Application (Android)
  • RM Easiteach Next Generation – educational and teaching software (optional)
  • DisplayNote – collaboration software (optional)
Display:
EAN: 8592580114052
Screen Type: OpenCell DLED Backlight
Aspect Ratio: 16:9
Resolution: UHD (3840 × 2160 )
Display Area: 1649,66 (H) x 927,94 (V) mm
Display Colors: 1.07 B (10 - bit)
Diagonal Size: 75"
Brightness: 450 cd/m2
Contrast: 1200 : 1
Response Time: 6 ms
Refreshing Frequency: 60 Hz
View Angle: 178°/178° (H/V)
Lifetime: 50.000 hrs
Mounting Brackets: VESA 600 x 400 (Optional)
Outline Dimension: 1736,8 x 1035,3 x 108 mm
Packing Dimensions: 1990 x 1165 x 320 mm
Net Weight: 61,15 kg
Gross Weight: 87,7 kg
Touch System:
Touch Input: 32 Touch Input
Sensing Type: Infrared Transmission (multi-touch)
Response Time: < 10 ms (typ
Output Coordinates: 32768 × 32768
Communication Mode: HDMI 2.0 and Full-speed USB
Writing Screen: Mohs hardness of 7
Compatibility: Windows, Mac, Linux, Android, Chrome
PC System: OPS PC (Optional)
Sound System:
Power Amplify: 2 x 20 W
Number of Sound Box: 2
Sound: Surround
Power:
Power Requirements: 100~240 V AC 50/60 Hz
Overall Power Consumption: < 320 W
Standby Power Consumption: < 0.5 W
