70“ MULTI Touch LED LCD

TRIUMPH BOARD 70” MULTI Touch LED LCD is a fully integrated, professional, multi touch FULL HD LED LCD with amazing performance and stunning visuals.

TRIUMPH BOARD 70” MULTI Touch LED LCD is an effective presentations tool for showing lessons or presentations interactively in any classroom and meeting room. The IR LED optical technology allows 10 finger touch, up to 10 users to write and draw simultaneously using fingers, stylus or even a pointer.

The optional built-in MINI PC with incorporated Intel® Core™ i5 Processor and Microsoft® Windows® Pro (OEM) with a selection of language options and preinstalled applications, delivering top-of-the-line performance for a zero-compromise experience.

A wide range of accessories such as LiftBoxes or mobile stands makes a perfect solution!

Contact Us

If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.

Contact

Product videos

  • Multi-Touch (10 Touch Input)
  • FULL HD resolution (1920×1080)
  • Android system
  • Optional Build in MINI PC
  • Optional LiftBoxes and Stands
  • TRIUMPH CLOUD – the online annotation software with cloud data storage
  • TB Comenius Lite – the instant desktop annotation software
  • Display Note – the collaboration software (Cloud)
  • MyScript Stylus – the handwriting recognition software for easy and keyboard-free typing into any text fi eld, in any application
  • RM Easiteach Next Generation – the comprehensive educational and teaching software
EAN: 8592580111914
Display:
Screen Type: TFT LCD/A Standard/LED backlight
Resolution: FULL HD (1920 x 1080)
Display Area: 1538.880 (H) x 865.620 (V) mm
Display Colors: 1,07 B (10 - bit)
Diagonal Size: 1765,63 mm
Brightness: 350 cd/m2
Contrast: 4000:1
Response Time: 4 ms
Refreshing Frequency: 120 Hz
View Angle: 178°/178° (H/V)
Service Life: 50.000 hrs
Outline Dimension: 1713 x 1035 x 100 mm
Package Dimension: 1830 x 1195 x 245 mm
Net Weight: 73 kg
Gross Weight: 96 kg
Touch System:
Touch Input: 10 Touch Input
Sensing Type: Infrared Transmission (multi-touch)
Response Time: < 15 ms (typ)
Scan Frequency: 200 Hz
Output Coordinates: 32767 × 32767
Communication Mode: Full-speed USB
Writing Facility (Single Point): Any Opaque Object that > ø 5 mm
Writing Facility ( Multi Point): Any Opaque Object that > ø 8 mm
Writing Screen: Mohs hardness of 7
Lifetime: > 80 000 hours
PC System: PC10A (Optional)
Sound System:
Power Amplify: 2 x 10 W
Number of Sound Box: 2 Surround
Power:
Power Requirements: 100~240 V AC 50/60 Hz
Overall Power Consumption: < 252 W
Standby Power Consumption: ≤ 0.5 W
Datasheet_MULTI_ Touch_LED_LCD_70_EN_2016Download
Datasheet_MULTI_ Touch_LED_LCD_70_US_2016Download
Datasheet_MULTI_ Touch_LED_LCD_70_DE_2016Download
Education_Catalog_EN_2016Download
Education_Catalog_US_2016Download
Quick Start Guide LED LCD EN Android 84 EN 2015Download
Quick Start Guide LED LCD Android 55 65 70 EN 2015Download
Manual LED LCD Android EN 2016Download
Windows Image Installation MINI PC6A/PC7A.pdfDownload
Manual_Wall_Mount_LCD_130Download
Touch Service IR V1.48 20130330-0Download
Tools IR USB 3010 MAC 20131016 01Download
LED LCD Mini PC6A 7A DriversDownload
MAC_Touch_Drivers_for_LED_LCD_Android_SeriesDownload

Contact Us

If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.

Contact

Related products

LiftBox for 65"/ 70" LED LCDs

The TRIUMPH BOARD LiftBox for LED LCDs is the perfect and easy solution to move TRIUMPH BOARD LED LCDs up and down, without electric power.

65“ MULTI Touch LED LCD 4K

TRIUMPH BOARD 65” MULTI Touch LED LCD is a fully integrated, professional, multi touch 4K/2K LED LCD with amazing performance and stunning visuals.

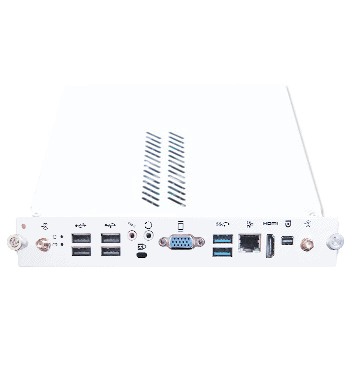

MINI PC PC10A
